BPMN Training Part 2: Start/End Event, User Task, Sequence Flow



xAPPnow provides an easy usage of a BPMN User Task. Related subfolder of the xAPPnow training project: "C02"



Chapter Overview


In this training chapter you get familiar with the most frequent BPMN process model elements using low code platform xAPPnow.


  • Start Event
  • User Task
  • End Event
  • Sequence Flow


Further start events and end events are explained in the advanced and expert training.






Sample BPMN Process Model

Tutorial Model: Automation/Business Process/Training/BPMN/Chapter/C02/StartEndEvent_UserTask


Process Explanation:

  • The process is started in the lane of group "TeamA" by a start event.
  • The sequence flow of the start event triggers the user task "Enter Data", which has to be executed by a user of group "TeamA".
  • After the user task "Enter Data" is finished by the user, the user task "Verify Data" is triggered by the sequence flow.
  • The user task "Verify Data" is positioned in the second lane of group "TeamB" and therefore has to be executed by a  user of group "TeamB".
  • After the user has finished the user task "Verify Data" the sequence flow triggers the end event, which directly completes the process.




BPMN Training Part 2: Start/End Event, User Task, Sequence Flow


Remark:
  • Always use meaningful labels to easily understand a process model.
  • We recommend to use the format "verb" plus "noun" to specify the label of an activity.
  • The user task has a "User Task" frontend service model assigned as a submodel, which contains a UI Page element with the related user interface.


Please view the video before starting the excercise, because the process is similar to this training chapter.







Exercise


In this exercise you will get familiar with the basic BPMN elements by implementing the process as described above. The process will then be published online, where the user tasks of the process can be executed directly in the xAPPnow User Portal.  In this sample a user from group "TeamA" enters a first name and last name and a second user from group "TeamB" verifies this data. This could be implemented by xAPPnow following the exercises described below.


Exercise 1: Create the Business Process Model

Remark: Add your user name as a prefix to the model name to easily filter your personal process in the runtime environment (User Portal, Camunda).

  • Step 1: Right click at model tree folder "Automation/Business Process/Training/BPMN/Exercise/C02" to open context menu "Create Model"
  • Step 2: Enter model name "Username_StartEndEvent_UserTask" and keep option "Model Type: Process" in dialog "Create Business Process Model"
  • Step 3: Click button "Search" to open dialog "Select Template"



BPMN Training Part 2: Start/End Event, User Task, Sequence Flow

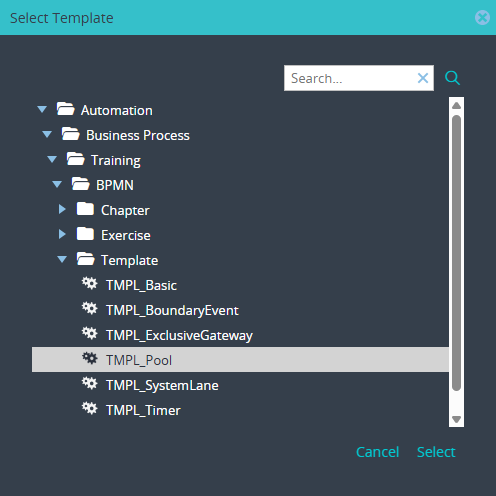

  • Step 5: Select template "TMPL_Pool" in dialog "Select Template" with double click or click button "Select"








Exercise 2: Complete the Process Model

Complete the process model like the model above.

  • Step 1: Select second lane and press F2 key to enter label "TeamB"
  • Step 2: Open pool context menu and click at start event element to add it with label "Start" to first lane "TeamA"



BPMN Training Part 2: Start/End Event, User Task, Sequence Flow


  • Step 3: Open context menu of start event and click at user task element to connect it with label "Enter Data"


BPMN Training Part 2: Start/End Event, User Task, Sequence Flow


  • Step 4: Open context menu of user task "Enter Data" and drag&drop a user task element into lane "TeamB" to connect it with label "Verify Data"


BPMN Training Part 2: Start/End Event, User Task, Sequence Flow


  • Step 5: Select both tasks using CTRL + left click and open context menu to configure color light blue


BPMN Training Part 2: Start/End Event, User Task, Sequence Flow


  • Step 6: Open context menu of user task "Verify Data" and click at end event element to connect it with label "End"


    BPMN Training Part 2: Start/End Event, User Task, Sequence Flow



Exercise 3: Assign User Task Model

  • Step 1: Assign the user task model "BasicElements" as submodel to both user tasks.
  • Step 2: View the related submodels of the process
  • Navigate to the user task model of the user task with a double click
  • In user task model navigate to the UI page model with a double click at UI page element
  • Click tool bar button "Back to Parent Model" twice to return to process model



BPMN Training Part 2: Start/End Event, User Task, Sequence Flow



Exercise 4: Publish the Process Model

The process model has to be published into Camunda process engine. The process will be started online directly.

  • Step 1: Click button "Publish" to open the dialog "Publish Model"
  • Step 2: Enter username and password
  • Step 3: Publish the process with options "Start Process"

    Remark: Typically, a user publishes into his own tenant specific environment. You need specific access rigths to publish a model into environments of other tenants.



BPMN Training Part 2: Start/End Event, User Task, Sequence Flow



Exercise 5: Publish the User Task Model

The user task submodel of the process related user tasks has to be published separately into the xAPPnow User Portal and is directly online.

  • Step 1: Double click at one of the user tasks to navigate to the related submodel (both user tasks are using the same user task model)
  • Step 2: Click button "Publish" to open dialog "Publish Model"
  • Step 3: Enter username and password
  • Step 4: Publish the user task model





Exercise 6: Excute the Process online in User Portal

  • Step 1: Open User Portal
  • Step 2: Login into User Portal with user "john", who belongs to group "TeamA".
  • Step 3: Start task "Enter Data"



BPMN Training Part 2: Start/End Event, User Task, Sequence Flow



  • Step 4: Execute task "Enter Data" and enter process data for "First Name" and "Last Name" in the dialog and click button "OK".
  • Step 5: The task list does no longer contain this task.
  • Step 6: The next task of the process has to be executed by a user of "TeamB".







  • Step 7: Login into User Portal with user "jane", who belongs to group "TeamB"
  • Step 8: Execute task "Verify Data" to verify the process data entered by a user of "TeamA"
  • Step 9: Click button "OK", which ends the process


Exercise 6: Repeat the Process Execution

You can repeat the execution by starting the process again.

  • Step 1: Login into User Portal with user "john"
  • Step 2: Open menu "Processes" to start your process "Username_StartEndEvent_UserTask"

  • Step 3: Open menu "My Task" to execute task "Enter Data" of "TeamA"

  • Step 4: Login into User Portal with user "jane"
  • Step 5: Execute task "Verify Data" of "TeamB" to end the process.



BPMN Training Part 2: Start/End Event, User Task, Sequence Flow





1

Enter Model Name

1. Enter Model Name
Enter model name with prefix of your username "Username_StartEndEvent_UserTask" to easily filter your personal models at runtime environment (User Portal, Camunda).
2

Use default Process Model

2. Use default Process Model
Keep default selection of "Process Model"
3

Select Template

3. Select Template
Click button "Search" to select the project template.
1

Start "Verify Data"

1. Start "Verify Data"
Select user task "Verify Data" and process the data verification.

1

Select Menu Processes

1. Select Menu Processes
Select menu "Processes" to open the dialog to view and start processes.
2

Select Process

2. Select Process
Select the process you want to start.
3

Start Process

3. Start Process
Double click at selected row or click button "Start" to start the process.


1

Select Menu Processes

1. Select Menu Processes
Select menu "Processes" to open the dialog to view and start processes.
2

Select Process

2. Select Process
Select the process you want to start.
3

Start Process

3. Start Process
Double click at selected row or click button "Start" to start the process.





1

Default Menu "My Task"

1. Default Menu "My Task"
After login the user is directly in the "My Task" dialog.
2

Click Start

2. Click Start
Click button "Start" to execute the User Task "Enter Data".



1

Click Publish

1. Click Publish
Click button Publish to open the "Publish Model" dialog.
2

Enter Username
and Password

2. Enter Username and Password
The user must have access rights to publish a model.
3

Select Option
Start Process

3. Select Option Start Process
Select option "Start Process" to directly start the process after publish was executed.
4

Click OK to publish
the process model

4. Click OK to publish the process model
Click button OK to publish the model into the process engine.


1

Select User Task

1. Select User Task
Select the User Task "Enter Data"
2

Open General TAB

2. Open General TAB
Open the General TAB for the User Task
3

Open Submodel Dialog

3. Open Submodel Dialog
Click button Search to open the "Select or Create Submodel" dialog.
4

Select User Task Model

4. Select User Task Model
Select user task model "BasicElements".
5

Click to uncheck

5. Click to uncheck
Click option "Generate User Task Title" to uncheck this option. This allows to generate user task titles but will not be used in these tutorial.
6

Assign Submodel

6. Assign Submodel
Click button Select to assign the submodel to the User Task.

1

Connect End Event

1. Connect End Event
Open context menu of user task "Verify Data" and click at end event element to connect it with label "End"

1

Select Color

1. Select Color
Select both tasks using CTRL + left click and open context menu to configure color light blue

1

Connect User Task "Verify Data"

1. Connect User Task "Verify Data"
Open context menu of user task "Enter Data" and drag&drop a user task element into lane "TeamB" to connect it with label "Verify Data"


1

Connect User Task "Enter Data"

1. Connect User Task "Enter Data"
Open context menu of start event and click at task element to connect it with label "Enter Data"




1

Add Start Event

1. Add Start Event
Open pool context menu and click at start event element to add it with label "Start" to first lane "TeamA"
2

Enter Group "TeamB"

2. Enter Group "TeamB"
Select second lane and press F2 key to enter label "TeamB"




1

Start Event

1. Start Event
The start event initiates a process.
2

User Task

2. User Task
A user task is used to model an activity, which has to be executed by a human performer.
3

End Event

3. End Event
A process must always have an end event.
4

Sequence Flow

4. Sequence Flow
The sequence flow is the standard flow to connect BPMN elements.
5

Submodel Marker

5. Submodel Marker
The plus sign is a submodel marker. The user task has a User Task frontend service model assigned as a submodel.
