Backend Services Dialog - xAPPnow User Portal
The Backend Services dialog of the xAPPnow User Portal displays backend service models that were published using xAPPnow Modeling Studio. The backend types are: Rest Endpoint and Dynamic Backend. The page view is divided in two main sections: the table that displays the published backend services according to the filters, and the "Backend Service Details" panel.
Backend Service Details
This panel is available for each backend service.
 Select Type FilterBaxkend Service table can display all types or single type by selecting the different options here.
|
|
 Select Project FilterSelect option "All" to display all backend services or select a project on the combobox list to display the backend services of the selected project
|
|
 Delete Backend ServiceClick to delete the selected backend service. If a backend service was published with option "Domain Specific" on false then this backend service can only be deleted on the same domain from it was published.
|
|

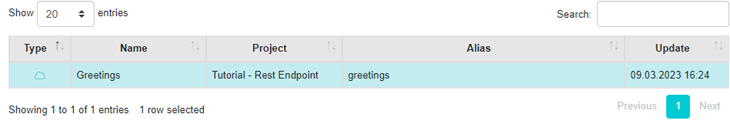

 Display Backend ServicesDisplay the list of backend services deployed according to filters selected.
|
|
 Display Backend Details This section displays the details of the selected backend service.
|
|
Display Model IdShows the backend service ID as read only
|
|
Display Published DateEverytime the backend service is published the date is updated and displayed on backend service table and on service detail panel
|
|
Display Model PathDisplays the path of the model on xAPPnow Modeling Studio with the format: <level>/<model_type>/<folders>/<model_name>
|
|
Display Model NameThe name of the model in the TAB "General"
|
|
Display Model AliasDisplays as read only the Alias to access the model that was defined on "Model" Sub TAB of xAPPnow Modeling Studio
|
|
