Training Backend Service Model - PDF Read Form Fields
Related subfolder of the training project: "Automation/Service/Training/Service/Exercise/PDFConnector/Server"
Chapter Overview
In this training chapter you will get familiar with the PDF Connector which allows to read form fields and save it on a business object as an output given a PDF file.
Precondition
Before you can start working with a PDF Connector the following preconditions have to be available
-
PDF file- a pdf file that will be used in the sample. You can download from TAB "Attachments" of the model: "Automation/Service/Tutorial/Service/PDFConnector/Server/ReadFormFields"
-
Business Object - a business object containing the attributes where the values will be saved
-
Error Object & Error Definition Object - special kind of business object and definition object to store the possible errors returned by the PDF connector
-
Error Handler - submodels to handle fatal error of the PDF connector
1. PDF File

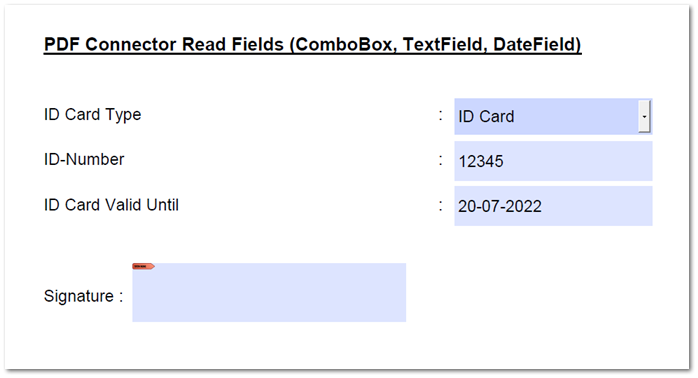

To execute this tutorial you need a sample pdf file called "PDF_FormFields.pdf". This pdf file contains form fileds which values will be saved on a business object. The attributes of the business object must have the identical names of the corresponding placeholders of the PDF file.
REMARK: FormField of Type Date in PDF must have Format dd-mm-yyyy. In case Signature is empty the BO signature attribute will return a false value in a boolean field.
2. Business Object

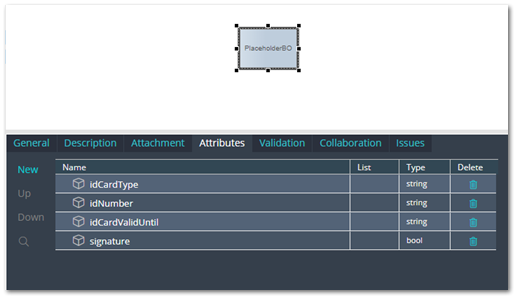

This business object will contain the attributes where the values will be saved. This must be manually created in Business Object Model with the exact names defined on the PDF file. The following screenshot displays this business object.
Tutorial Model: Automation/Data Object/Tutorial/Service/PDFConnector/BO
3. Error Object & Error Definition Object
Step number three is very important to handle possible error (e.g. "authentication exception") that could occur during an PDF call.
For each connector type (DB, REST, PDF etc.) you have to add a specific Error Definition Object and the related specific Error Object once within each project, as well as one single generic error BO "GenericError". The Error Object defined that holds the current error category, error code and error details as well as the boolean attribute isBusinessError (false = Fatal Error). The business object "GenericError" is a general error object to accept all kinds of error and is typically used to display an error in the UI page.
Tutorial Model: Automation/Data Object/Appollo/CommonBO

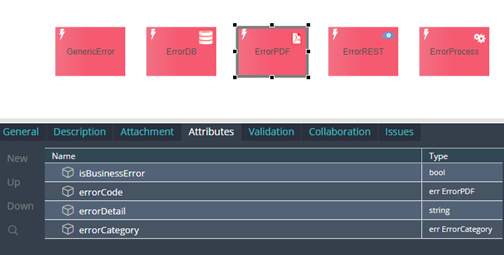

The screenshot below demonstrates the error object "ErrorFile" which is required for a PDF Connector
Tutorial Model: Automation/Data Object/Appollo/CommonDef

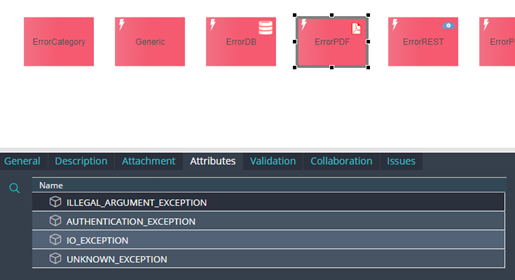

The screenshot below demonstrates the error definition object "ErrorFile" which is required for a PDF Connector and contains the multi-lingual error codes.
Additionally, the error definition "ErrorCategory" contains the multi-lingual connector names to be used in UI pages to display the multi-lingual error category.
4. Error Handling
Within this last precondition we will add a submodel for the fatal error handling to the project. The fatal error will be displayed in a multi-lingual UI Dialog "FatalError" plus the stack trace, which can be analysed by the developer or system administrator.
Tutorial Model: Automation/Service/Base/API/FatalErrorHandler

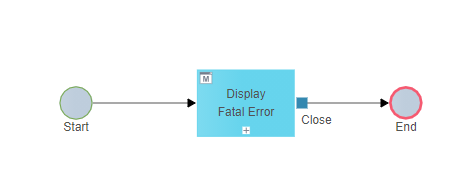

The screenshot below demonstrates the submodel "FatalErrorHandler"
Tutorial Model: Automation/User Interface/Base/UIPage/FatalError

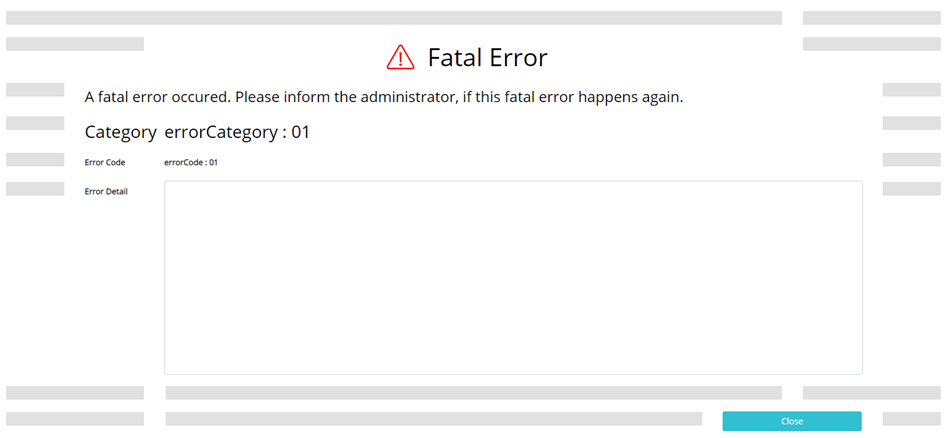

The screenshot below demonstrates the design of UI dialog "FatalError" on the editor
Model Explanation

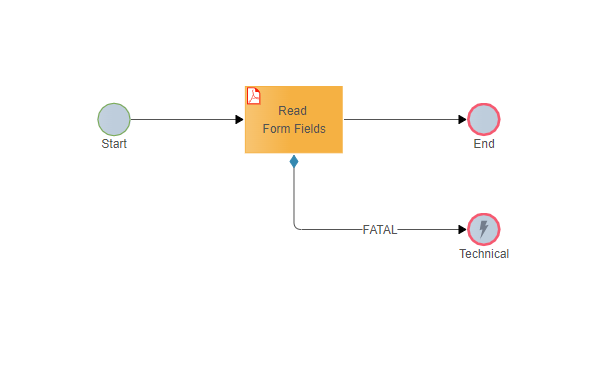

The model only contains the PDF connector configured to ends the model in case a successfull operation or in case an error, it throws the technical error end event to be displayed on a parent Business Process which calls the connector.
Exercise - PDF Connector Read Form Fields
In this exercise you will learn how to use a PDF connector with a function Read Form Fields
Exercise 1: Create the Model "ReadFormFields"
-

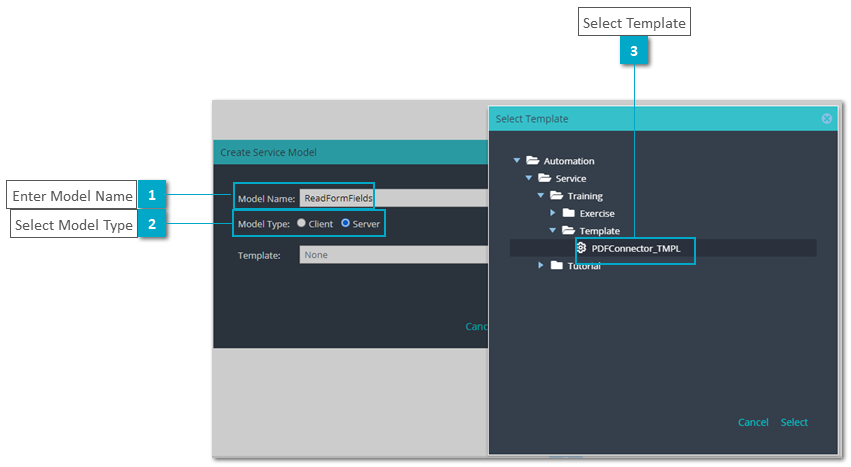

Step 1: Right click at model tree folder "Automation/Service/Training/Service/Exercise/PDF/Server" to open context menu "Create Model"
-
Step 2: Enter model name "ReadFormFields" and select option "Model Type: Server" in dialog "Create Service Model"
-
Step 3: Click button "Search" to open dialog "Select Template" to select model "PDFConnector_TMPL" from folder ".../Template/PDFConnector_TMPL"
-
Step 4: Click button "OK" to create the model
Exercise 2: Complete the model "ReadFormFields"
-
Step 1: Right click at event "Start" to open context menu and select a pdf connector, enter label "Read Form Fields"
-
Step 2: Draw a standard flow from PDF connector "Read Form Fields" to End Event element
-
Step 3: Draw a fatal flow from PDF connector element "Read Form Fields" to Error End Event element "Technical"
Exercise 3: Configure PDF Connector
In this exercise you will configure the PDF connector using the function Read Form Fields.
Function "Read Form Fields"
-

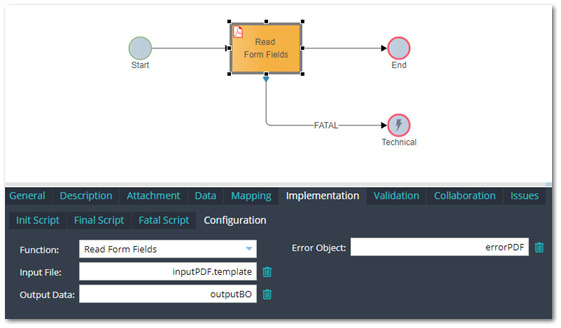

Step 1: Select PDF Connector "Read Form Fields" and open TAB "Implementation", SubTAB "Configuration" to configure the PDF Connector
-
Step 2: Select Function "Read Form Fields", map on Input File: "inputPDF.template", on Output Data: "outputBO" and Error Object with "errorPDF"
-

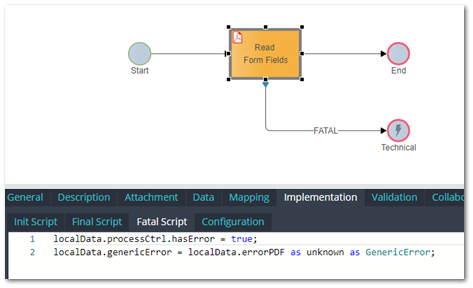

Step 4: Select SubTAB "Fatal Script" and enter the following script:
localData.processCtrl.hasError = true;
localData.genericError = localData.errorPDF as unknown as GenericError;
Exercise 4: Set Service Server Model as Submodel
-

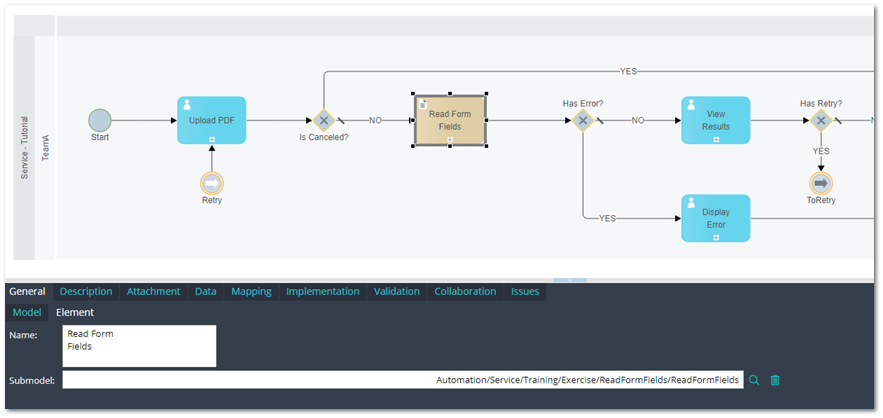

Step 1: Open model "Automation/Business Process/Tutorial/Service/PDFConnector/ReadFormFields"
-
Step 2: Select script element "Read Form Fields" and open TAB "General", SubTAB "Element" to change Submodel
-
Step 3: Click button "Search" to open dialog "Select or Create Submodel" to select model "ReadFormFields" from folder ".../Exercise/ReadFormFields/ReadFormFields"
Exercise 5a: Publish the Business Process Model
-

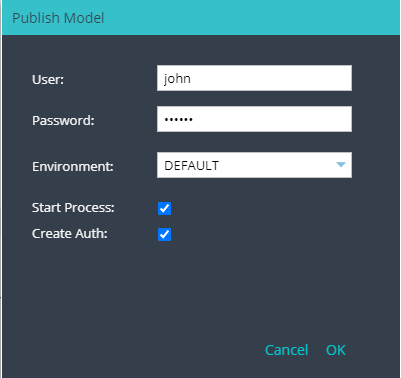

Step 1: Click button "Publish" to open dialog "Publish Model"
-
Step 2: Enter username and password and set option "Start Process"
-
Step 3: Click button "OK" to publish the business process model
Exercise 5b: Publish the Frontend Service Models
-
Step 1: Open model "Automation/Service/Base/API/FatalErrorHandler" to publish the fatal error handler
-
Step 2: Enter username and password
-
Step 3: Click button "OK" to publish the frontend service model
-
Step 4: Open model "Automation/Service/Tutorial/Service/PDFConnector/Client/UploadPDF"
-
Step 5: Repeat steps 2 and 3 for this model
-
Step 6: Open model "Automation/Service/Tutorial/Service/PDFConnector/Client/ViewResults"
-
Step 7: Repeat steps 2 and 3 for this model
Exercise 6: Test Model in User Portal (Standard Execution)
-

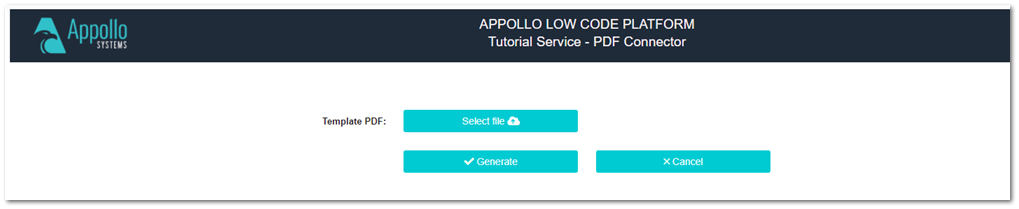

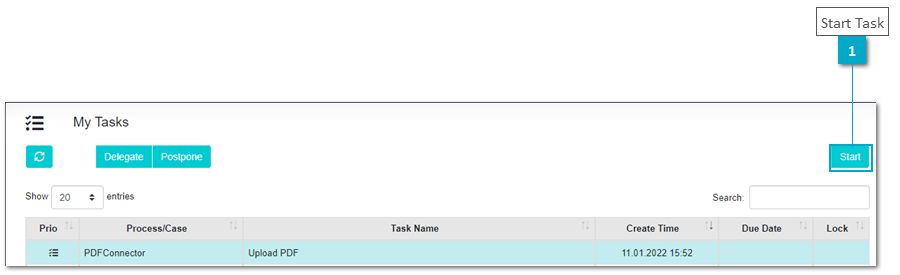

Step 1: Login into User Portal and open menu "MyTasks" to start task "Upload PDF"
-
Step 2: Select the pdf file then click button "OK"
-

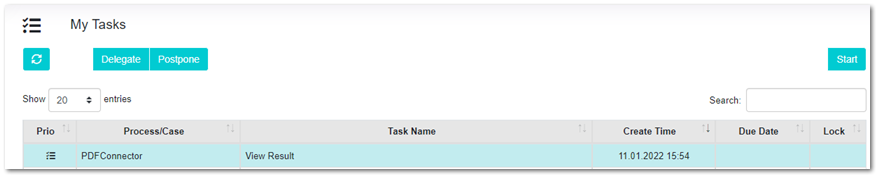

Step 3: Open menu "MyTasks" to start task "View Result" to check the values
