TAB General/SubTAB Model - Advanced Model Properties



In case of a Frontend Service Model the Model SubTAB of the General TAB has additional properties to configure an application icon for the My Apps menu of the xAPPnow User Portal. Also in case a submodel type a checkbox is displayed.

For WebApp subtypes this is the General TAB properties:

TAB General/SubTAB Model - Advanced Model Properties

In case of a PWA model the General TAB has the following additional properties:


TAB General/SubTAB Model - Advanced Model Properties

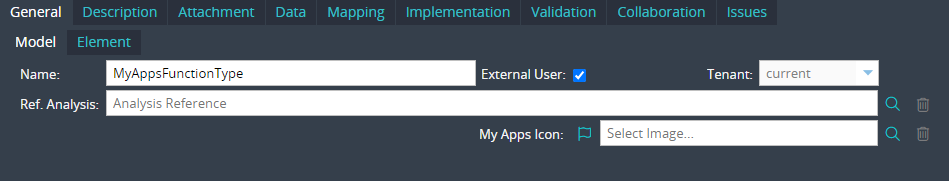

For MyApps subtypes this is the General TAB properties:

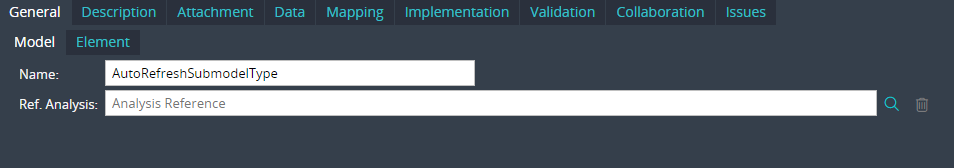

For Autorefresh and Submodel subtypes this is the General TAB properties:


For Dynamic Service and User Task subtypes, this is the General TAB properties:


And for Dynamic Webhook subtypes, this is the General TAB properties:




1

Click Model Sub TAB

1. Click Model Sub TAB
Select this Sub TAB to define model properties.
2

Enter model name

2. Enter model name
Enter the display name for model. The display name is used in the Process List, Frontend Services List or MyApps of the xAPPnow User Portal.
3

Select reference

3. Select reference
Use these options to set references to a model from the previous level and for the next level. If a model is located in Level Analysis it is possible to set a reference to an Innovation model and a reference to an Automation model.
             Note: Only references to models of the same model type are possible
4

Select model type

4. Select model type
Choose to display this model as a function or application when deploy model into xAPPnow User Portal. Check Submodel option in case the model will be call by a parent model.
5

Select an icon

5. Select an icon
Client Service Models deployed as application can have an icon. This icon can be selected from the select icon dialog.
6

Select icon from attachments

6. Select icon from attachments
The icon can also be selected from model attachments. For this add an attachment to the model. See Attachments TAB.

1

Model Name

1. Model Name
Enter the display name for model. The display name is used in the Process List, Frontend Services List or MyApps of the xAPPnow User Portal.
2

Enter App Alias

2. Enter App Alias
This alias will be used to directly call the PWA function
3

PWA URL

3. PWA URL
This URL is generated using the Alias to directly access the PWA
1

Model Name

1. Model Name
Here is displayed the name of the model.
2

Model Reference

2. Model Reference
Use these options to set references to a model from the previous level and for the next level. If a model is located in Level Analysis it is possible to set a reference to an Innovation model and a reference to an Automation model.
             Note: Only references to models of the same model type are possible
3

App Alias

3. App Alias
Use this Alias to generate a URL to access the Frontend Service deployment
4

App URL

4. App URL
This URL is generated using the Alias to directly access the Frontend Service deployment
5

Define access to the WebApp

5. Define access to the WebApp
Define if the Frontend Service can be accessed by External or Guest users
6

Tenant Specific

6. Tenant Specific
Indicates if the Frontend Service is being deployed for a specific tenant or for other domains.
7

Define an icon to display in My Apps

7. Define an icon to display in My Apps
Frontend Service Models deployed as application can have an icon. This icon can be selected from the select icon dialog.
8

Select Model Attachment

8. Select Model Attachment
The icon can also be selected from model attachments. For this add an attachment to the model. See Attachments TAB.
1

Model Name

1. Model Name
Enter the display name for model. The display name is used in the Process List, Frontend Services List or MyApps of the xAPPnow User Portal.
2

App Alias

2. App Alias
This alias will be used to directly call the PWA function
3

App URL

3. App URL
This URL is generated using the Alias to directly access the Frontend Service deployment. The login page will be displayed to enter external user credentials.
4

Guest URL

4. Guest URL
This URL is generated using the Alias to directly access the Frontend Service deployment using as a guest user without login into the app.
