UI Element - PasswordField


Related subfolder of the training project: "Training/UIM/Exercise/Basic"



Chapter Overview


In this training chapter you get familiar with the configuration possibilities of the UI Element PasswordField.



TAB "Element Properties"

The TAB "Element Properties" contains the configuration for

  • UI element value horizontal alignment (left, center, right)
  • UI element width configuration (percentage, pixel)
  • UI container horizontal alignment (left, center, right)






TAB "Data Mapping"

The TAB "Data Mapping" contains the attribute type related mapping of the UI element

  • string






TAB "Data Validation"

The TAB "Data Validation" contains the attribute type related validation, default value and mandatory specification of the UI element based on the BO attribute configuration in SubTAB "Values and Validation".

  • string mandatory
  • string length range
  • string default value
  • string regular expression
  • string fixed length








    TAB "Events"

    The TAB "Events" contains the events and related "Action" and "Validation" scripts of the UI element.

  • onClick
  • onDoubleClick
  • onBlur
  • onKeyUp

    For each UI element the related event action is displayed at the right side of the UI element. In case of a validation error a default error message is displayed at the top right of the UI page and the action script is not executed.






    TAB "Visibility"

    The TAB "Visibility" contains the visibility configuration and the "Visibility" scripts of the UI element.

  • editable/readonly
  • visible/invisible

    For each UI element the visibility can be changed by the checkbox "Visibility Toggle".







Exercise


In this exercise you will get familiar with the configuration possibilities of the UI element by completing the UI TABs as described above. You can test the implementation in UI Page Preview, in the Preview of the Frontend Service Model and optionally in the xAPPnow User Portal.



Exercise 1: Create UI Page "PasswordField"

  • Step 1: Open context menu of folder "Automation/User Interface/Training/UIM/Exercise/Basic" in the model tree

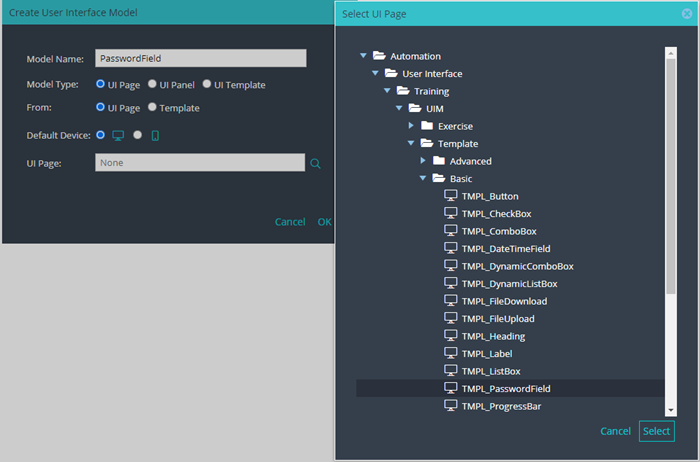

  • Step 2: Select menu function "Create Model" to open dialog "Create User Interface Model"
  • Step 3: Enter model name "PasswordField" and keep option "Model Type: UI Page"
  • Step 4: Select option "From: UI Page" to open dialog "Select UI Page", open folder "…/Training/UIM/Template/Basic" to select template "TMPL_PasswordField" with double click then keep default option for "Default Device" and click button "OK" to create the UI page






Exercise 2: TAB "Element Properties"

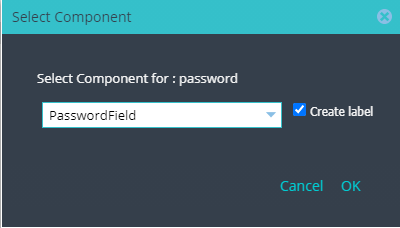

  • Step 1: Drag&Drop attribute "password.password" from TAB "Data" into second free span to open dialog "Select Component", select "PasswordField" on list, keep the checkbox "Create Label" selected to add the corresponding UI Label and UI PasswordField to the UI page and click button "OK".




UI Element - PasswordField



  • Step 2: Repeat Step 1 and add Label and PasswordField for attribute "password.password" to
  • H-Aligment [Center], [Right]
  • Width [50%], [100px]
  • Container H-Aligment [Left], [Center], [Right]




UI Element - PasswordField



  • Step 3: Open TAB "Implementation" SubTab "Element Properties" and select each UI PasswordField on "H-Alignment" to configure the values [Left], [Center], [Right]



UI Element - PasswordField



  • Step 4: In next row select the UI PasswordField to configure width [50%] and width [100px]



UI Element - PasswordField


  • Step 5: In row "Container (H-Alignment)" for each UI PasswordField:
  • Select each UI PasswordField to configure width [50%].
  • Select button "Span" to configure H-Alignment [Left], [Center], [Right] of the UI element




UI Element - PasswordField




Exercise 3: TAB "Data Mapping"

  • Step 1: Drag&Drop attribute "license.password" from TAB "Data" into second free span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.



UI Element - PasswordField




Exercise 4: TAB "Data Validation"

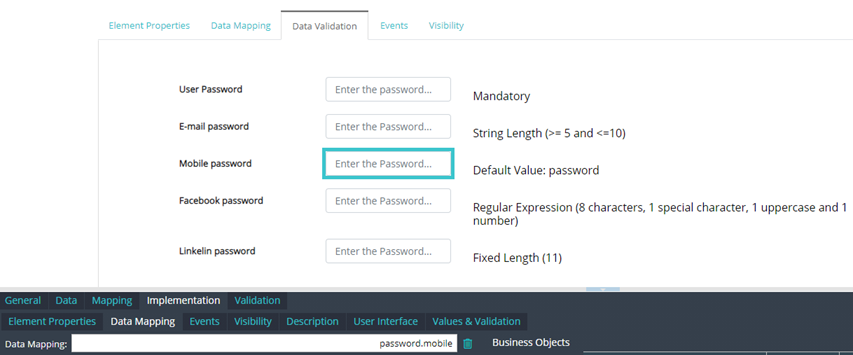

  • Step 1: Drag&Drop attribute "password.user" from TAB "Data" into the third free span of second row to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.



UI Element - PasswordField


  • Step 2 Repeat Step 1 and add Label and PasswordField for attributes
  • "password.email"
  • "password.mobile"
  • "password.facebook"
  • "password.linkedin"




UI Element - PasswordField



Exercise 5: TAB "Events" - Action Scripts

  • Step 1: Drag&Drop attribute "password.oldPass" from TAB "Data" into second free span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.




UI Element - PasswordField


  • Step 2 Repeat Step 1 to add Label and PasswordField for attributes
  • "password.reOldPass"
  • "password.newPass"
  • "password.reNewPass"

    UI Element - PasswordField



  • Step 3: Select the first UI PasswordField and open TAB "Implementation" SubTab "Events" to specify event type "onClick"
  • Step 4: Implement the action script, which displays the event action at the right side of the UI element.

localData.eventType.onClick = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CLICK;




UI Element - PasswordField




  • Step 5: Repeat Step 3 and 4 for the other UI elements to specify further event types and related action scripts, which display the related event action at the right side of the UI element.

  • event type "onDoubleClick"
localData.eventType.onDoubleClick = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_DOUBLE_CLICK;

  • event type "onBlur"
localData.eventType.onBlur = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_BLUR;

  • event type "onKeyUp"
localData.eventType.onKeyUp = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_KEY_UP;




UI Element - PasswordField


Exercise 6: TAB "Events" - Action & Validation Scripts

  • Step 1: Select the UI PasswordField with placeholder "Click here." and open TAB "Implementation" SubTab "Events" to specify event type "onClick"
  • Step 2: Implement the action and the validation scripts, which display the related event action at the right side of the UI element in case of no validation error.

  • action script "onClick" event
localData.eventType.onClickValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CLICK_VALID;

  • validation script "onClick" event
localData.eventType.isValid;


UI Element - PasswordField



  • Step 3: Repeat Step 1 and 2 for the other UI elements to specify further event types and related action and validation scripts, which display the related event action at the right side of the UI element.

  • action script
  • "onDoubleClick" event
localData.eventType.onDoubleClickValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_DOUBLE_CLICK_VALID;

  • "onBlur" event
localData.eventType.onBlurValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_BLUR_VALID;

  • "onKeyUp" event
localData.eventType.onKeyUpValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_KEY_UP_VALID;


  • validation script
  • "onDoubleClick" event
localData.eventType.isValid;

  • "onBlur" event
localData.eventType.isValid;

  • "onKeyUp" event
localData.eventType.isValid;




UI Element - PasswordField



Exercise 7: TAB "Visibility"

  • Step 1: Drag&Drop attribute "toggleVisibility" from TAB "Data" into the third free span of third row to open dialog "Select Component" to add the corresponding UI Label and UI CheckBox to the UI page.


UI Element - PasswordField



  • Step 2: Select the first UI PasswordField and open TAB "Implementation" SubTab "Visibility"
  • Step 3: Click at visibility type "Editable" and select state "Script"
  • Step 4: Implement the visibility script, which toggles the visibility "editable" and "readonly"

localData.toggleVisibility;


UI Element - PasswordField


  • Step 5: Repeat steps 2..4 for second UI PasswordField for visibility type "Visible", which toggles the visibility "visible" and "invisible"


UI Element - PasswordField



Exercise 8: Link UI Page to Frontend Service Model

  • Step 1: Open frontend service model "Automation/Service/Training/UIM/Exercise/Basic/PasswordField"
  • Step 2: Select UI page "View PasswordField" to open TAB "General", SubTAB "Element"

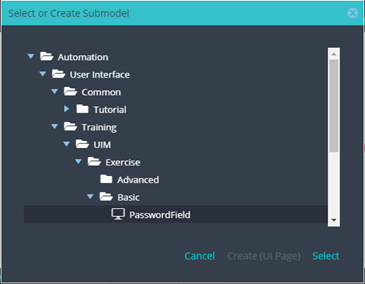

  • Step 3: Click button “Search“ to open dialog "Select or Create Submodel" and select UI page "PasswordField" with double click

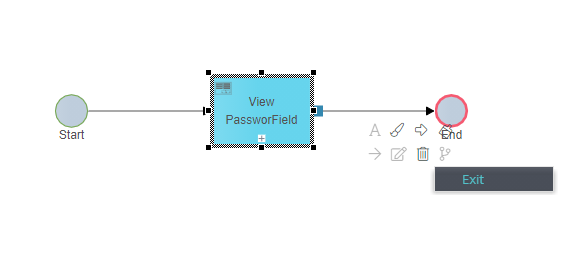

  • Step 4: Right click on button flow to select button "Exit".


Exercise 9: Test the UI Page

  • Step 1: Open UI Page and click button "Preview" in the toolbar to directly test the UI page within the UI editor
  • Step 2: Optionally publish the frontend service model and test the UI page in User Portal


1

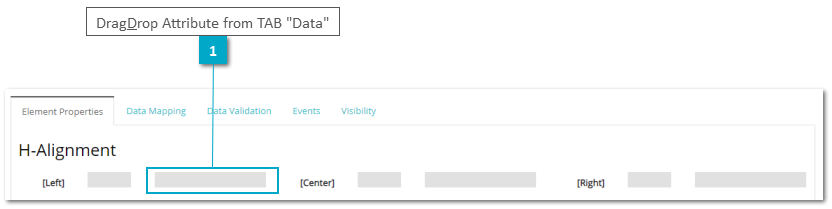

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute ""password.password"" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute ""password.password"" from TAB "Data" into the span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
2

Drag&Drop Attribute from TAB "Data"

2. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "password.password" from TAB "Data" into the span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
3

Drag&Drop Attribute from TAB "Data"

3. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "password.password" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
4

Drag&Drop Attribute from TAB "Data"

4. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "password.password" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
1

Configure Value H-Alignment

1. Configure Value H-Alignment
Open TAB "Properties" and select each UI PasswordField to configure the value H-Alignment [Left], [Center], [Right]
1

Configure Element Width

1. Configure Element Width
Select each UI PasswordField to configure the element width [50%]
2

Configure Element Width

2. Configure Element Width
Select each UI PasswordField to configure the element width [100px]
1

Click Button "Span"

1. Click Button "Span"
Click button "Span" to configure the element H-Alignment
2

Configure "Container (H-Alignment)"

2. Configure "Container (H-Alignment)"
Select button "Span" to configure H-Alignment [Left], [Center], [Right] of the UI element
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "license.password" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop other attributes of BO "stockitem" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "password.user" from TAB "Data" into third span to open in dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop other attributes of BO "password" from TAB "Data" into thrid empty span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
1

Drag&Drop from Data Tab

1. Drag&Drop from Data Tab
Drag&Drop attribute "password.oldPass" from TAB "Data" into second free span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop other attributes of BO "password" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI PasswordField to the UI page.
1

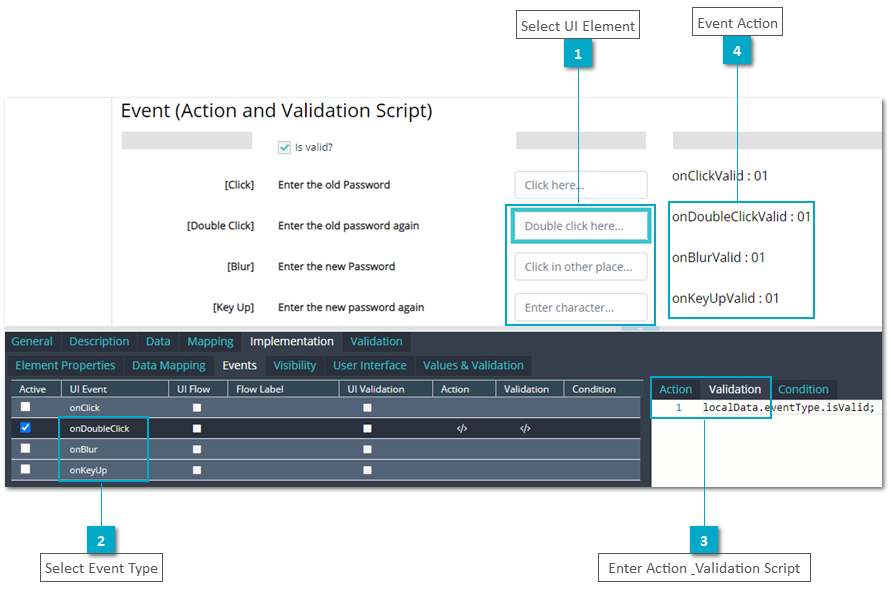

Select UI Element
