UI Element - Dynamic ListBox


Related subfolder of the training project: "Training/UIM/Exercise/Basic"



Chapter Overview


In this training chapter you get familiar with the configuration possibilities of the UI Element Dynamic ListBox.



TAB "Element Properties"

The TAB "Element Properties" contains the configuration for

  • value horizontal alignment (left, center, right)
  • UI element width configuration (percentage, pixel)
  • UI container horizontal alignment (left, center, right)
  • visible rows
  • key expression (name + rating, name + price)






TAB "Data Mapping"

The TAB "Data Mapping" contains the attribute type related mapping of the UI element

  • Business Object (BO) list
  • selected BO list
  • selected BO








TAB "Events"

The TAB "Events" contains the events and related "Action" and "Validation" scripts of the UI element.

  • onClick
  • onDoubleClick
  • onBlur
  • onChange

    For each UI element the related event action is displayed at the right side of the UI element. In case of a validation error a default error message is displayed at the top right of the UI page and the action script is not executed.






    TAB "Visibility"

    The TAB "Visibility" contains the the visibility configuration and the "Visibility" scripts of the UI element.

  • enabled/disabled
  • visible/invisible

    For each UI element the visibility can be changed by the checkbox "Visibility Toggle".








Exercise


In this exercise you will get familiar with the configuration possibilities of the UI element by completing the UI TABs as described above. You can test the implementation in UI Page Preview, in the Preview of the Frontend Service Model and optionally in the xAPPnow User Portal.


Exercise 1: Create UI Page "Dynamic ListBox"

  • Step 1: Open context menu of folder "Automation/User Interface/Training/UIM/Exercise/Basic" in the model tree
  • Step 2: Select menu function "Create Model" to open dialog "Create User Interface Model"
  • Step 3: Enter model name "DynamicListBox" and keep option "Model Type: UI Page"
  • Step 4: Select option "From: UI Page" to open dialog "Select UI Page", open folder "…/Training/UIM/Template/Basic" to select template "TMPL_DynamicListBox" with double click then keep default option for "Default Device" and click button "OK" to create the UI page






Exercise 2: TAB "Element Properties"

  • Step 1: Drag&Drop attribute "instrumentList" from TAB "Data" into first free span to open dialog "Select Component", select "DynamicListBox" on list to add the corresponding UI Dynamic ListBox to the UI page and click button "OK".





UI Element - Dynamic ListBox


  • Step 2: Repeat Step 1 and add UI Dynamic ListBox
  • H-Aligment [Center], [Right]
  • Width [50%], [100px]
  • Container H-Aligment [Left], [Center], [Right]
  • Visible Rows [1 row], [3 row], [5 rows]



UI Element - Dynamic ListBox



  • Step 3: Select each of previously added UI Dynamic ListBox and open TAB "Implementation" SubTab "Data Mapping" to map BO "Instrument" on field "Single selection"



UI Element - Dynamic ListBox



  • Step 4: Open TAB "Implementation" SubTab "Element Properties" and select each UI Dynamic ListBox to configure the value H-Alignment [Left], [Center], [Right]



UI Element - Dynamic ListBox



  • Step 5: In next row select the UI Dynamic ListBox to configure width [50%] and width [100px]



UI Element - Dynamic ListBox


  • Step 6: Select each UI Dynamic ListBox for "Container (H-Alignment)" property to configure width [50%]. Then select each of them again and click at button "Span" to configure H-Alignment [Left], [Center], [Right] of the UI element




UI Element - Dynamic ListBox

  • Step 7: Select each UI Dynamic ListBox for "Visible Rows" property to configure Visible rows with [1 row], [3 row], [5 rows]



    UI Element - Dynamic ListBox





  • Step 8: Select UI Dynamic ListBox with label "Item - Rating" and click on Key Expression button to open dialog "Key and Value Configuration"

    REMARK: To specify "Key Expression" property the UI Dynamic ListBox must have a BO List mapped. See Exercise 3 for "Data Mapping"



UI Element - Dynamic ListBox



  • Step 9: Select key "name: Product" and on textarea "Value Configuration Script"  enter the following line to display a label plus the name and rating of the product item:

"Item - Rating: " + obj.name + " - " + obj.rating;



UI Element - Dynamic ListBox


  • Step 10: Repeat Steps 7 and 8 for next UI Dynamic ListBox with label "Item - Price" then select key "name: Product" and enter the following line:

"Item - Price: "+ obj.name + " - " + obj.price;


Exercise 3: TAB "Data Mapping"

  • Step 1: Drag&Drop attribute "issueList" from Data TAB into first free span of second row to open dialog "Select Component" and add the corresponding UI Dynamic ListBox to the UI page
  • Step 2: Select UI Dynamic ListBox and open TAB "Implementation", SubTAB "Data Mapping" to map BO "issueSelected" into property "Single selection"



UI Element - Dynamic ListBox


  • Step 3: Select UI Dynamic ListBox and open TAB "Implementation", SubTAB "Element Properties" and click button "Data Config" to open dialog "Key and Value Configuration"

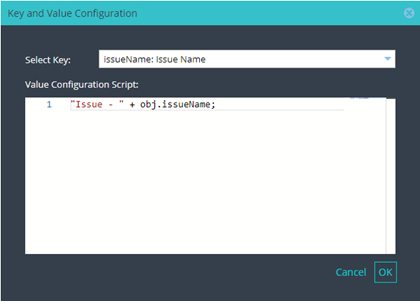

  • Step 4: Select key "issueName: Issue Name" and on textarea "Value Configuration Script"  enter the following line to display a label plus the name of the issue:

"Issue - " + obj.issueName;







  • Step 5: Repeat Step 1 for first free span of third row and then select UI Dynamic ListBox and open TAB "Implementation", SubTAB "Data Mapping" to map BO "issueSelectedList" into property "Multiple selection"
  • Step 6: Repeat steps 3 and 4 for the added UI Dynamic ListBox to stablish Data Configuration properties.


Exercise 4: TAB "Events" - Action Scripts


  • Step 1: Select the first UI Dynamic ListBox and open TAB "Implementation" SubTab "Events" to specify event type "onClick"
  • Step 2: Implement the action script, which displays the event action at the right side of the UI element.

localData.eventType.onClick = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CLICK;




UI Element - Dynamic ListBox




  • Step 3: Repeat Step 1 and 2 for the other UI elements to specify further event types and related action scripts, which display the related event action at the right side of the UI element.

  • event type "onDoubleClick"
localData.eventType.onDoubleClick = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_DOUBLE_CLICK;

  • event type "onBlur"
localData.eventType.onBlur = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_BLUR;

  • event type "onChange"
localData.eventType.onChange = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CHANGE;




UI Element - Dynamic ListBox


Exercise 5: TAB "Events" - Action & Validation Scripts

  • Step 1: Select the first UI ListBox and open TAB "Implementation" SubTab "Events" to specify event type "onClick"
  • Step 2: Implement the action the validation scripts, which display the related event action at the right side of the UI element in case of no validation error.

  • action script "onClick" event
localData.eventType.onClickValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CLICK_VALID;

  • validation script "onClick" event
localData.eventType.isValid


UI Element - Dynamic ListBox



  • Step 3: Repeat Step 1 and 2 for the other UI elements to specify further event types and related action and validation scripts, which display the related event action at the right side of the UI element.

  • action script
  • "onDoubleClick" event
localData.eventType.onDoubleClickValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_DOUBLE_CLICK_VALID;

  • "onBlur" event
localData.eventType.onBlurValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_BLUR_VALID;

  • "onChange" event
localData.eventType.onChangeValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CHANGE_VALID;



  • validation script
  • "onDoubleClick" event
localData.eventType.isValid

  • "onBlur" event
localData.eventType.isValid

  • "onChange" event
localData.eventType.isValid




UI Element - Dynamic ListBox




Exercise 6: TAB "Visibility"

  • Step 1: Drag&Drop attribute "toggleVisibility" from TAB "Data" into the third free span and keep default in dialog "Select Component" to add the corresponding UI Label and UI CheckBox to the UI page.


UI Element - Dynamic ListBox



  • Step 2: Select the first UI Dynamic ListBox and open TAB "Implementation" SubTab "Visibility"
  • Step 3: Click at visibility type "Enabled" and select state "Script"
  • Step 4: Implement the visibility script, which toggles the visibility "enabled" and "disabled"

localData.toggleVisibility


UI Element - Dynamic ListBox


  • Step 5: Repeat steps 2..4 for second UI Dynamic ListBox for visibility type  "Visible", which toggles the visibility "visible" and "invisible"



UI Element - Dynamic ListBox



Exercise 7: Link UI Page to Frontend Service Model

  • Step 1: Open frontend service model  "Automation/Service/Training/UIM/Exercise/Basic/DynamicListBox"
  • Step 2: Select UI page "View Dynamic ListBox" to open TAB "General", SubTAB "Element"

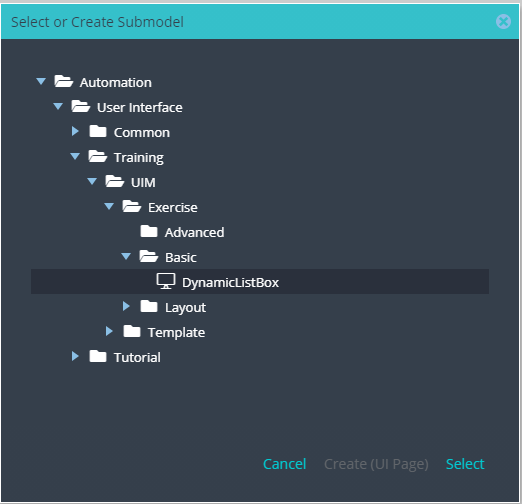

  • Step 3: Click button “Search“ to open dialog "Select or Create Submodel" and select UI page "DynamicListBox" with double click





  • Step 3: Right click on button flow to select button "Exit".



Exercise 8: Test the UI Page

  • Step 1: Open UI Page and click button "Preview" in the toolbar to directly test the UI page within the UI editor
  • Step 2: Optionally publish the frontend service model and test the UI page in User Portal
