UI Element - Image


Related subfolder of the training project: "Training/UIM/Exercise/Advanced"



Chapter Overview


In this training chapter you get familiar with the configuration possibilities of the UI Element Image.



TAB "Element Properties"

The TAB "Element Properties" contains the configuration for

  • UI container horizontal alignment (left, center, right)
  • UI element width configuration (percentage, pixel)
  • UI element height configuration (pixel)






TAB "Data Mapping"

The TAB "Data Mapping" contains the attribute type related mapping of the UI element

  • static image
  • dynamic image








TAB "Events"

The TAB "Events" contains the events and related "Action" and "Validation" scripts of the UI element.

  • onClick
  • onDoubleClick

    For each UI element the related event action is displayed at the right side of the UI element. In case of a validation error a default error message is displayed at the top right of the UI page and the action script is not executed.






    TAB "Visibility"

    The TAB "Visibility" contains the visibility configuration and the "Visibility" scripts of the UI element.

  • visible/invisible

    For each UI element the visibility can be changed by the checkbox "Visibility Toggle".






Exercise


In this exercise you will get familiar with the configuration possibilities of the UI element by completing the UI TABs as described above. You can test the implementation in UI Page Preview, in the Preview of the Frontend Service Model and optionally in the xAPPnow User Portal.


Exercise 1: Create UI Page "Image"

  • Step 1: Open context menu of folder "Automation/User Interface/Training/UIM/Exercise/Advanced" in the model tree

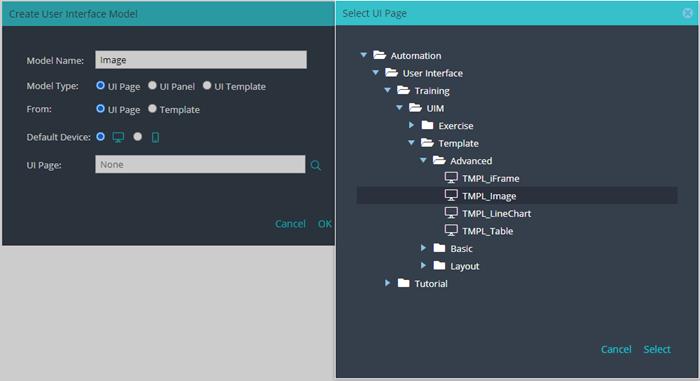

  • Step 2: Select menu function "Create Model" to open dialog "Create User Interface Model"
  • Step 3: Enter model name "Image" and keep option "Model Type: UI Page"
  • Step 4: Select option "From: UI Page" to open dialog "Select UI Page", open folder "…/Training/UIM/Template/Advanced" to select template "TMPL_Image" with double click then keep default option for "Default Device" and click button "OK" to create the UI page






Exercise 2: TAB "Element Properties"

  • Step 1: In row "Container (H-Alignment)" for each UI Image:
  • Select each UI Image to configure width [50%].
  • Select button "Span" to configure H-Alignment [Left], [Center], [Right] of the UI element




UI Element - Image



  • Step 2: In next row select the UI Image to configure width [50%] and width [100px]



UI Element - Image


  • Step 3: In row "Height" select the UI Image to configure height [50px] and height [25px]





UI Element - Image


Exercise 3: TAB "Data Mapping"

  • Step 1: Drag&Drop UI Image from palette into second free span to configure a "Static Image" to the UI page.



UI Element - Image




  • Step 2: Select the UI Image and open TAB "Implementation" SubTab "Element Properties", click button URL to open dialog "Select Image"




UI Element - Image


  • Step 3: Select the file "xAPPnow_Logo" and click on button "Select" or double click over "xAPPnow_Logo" to select static image.


UI Element - Image

  • Step 4: Drag&Drop attribute "photoAlbum.photo1" from TAB "Data" into second free span to open dialog "Select Component" and select "Image" and unmark option "Create Label" to add the corresponding UI Image to the UI page.






UI Element - Image

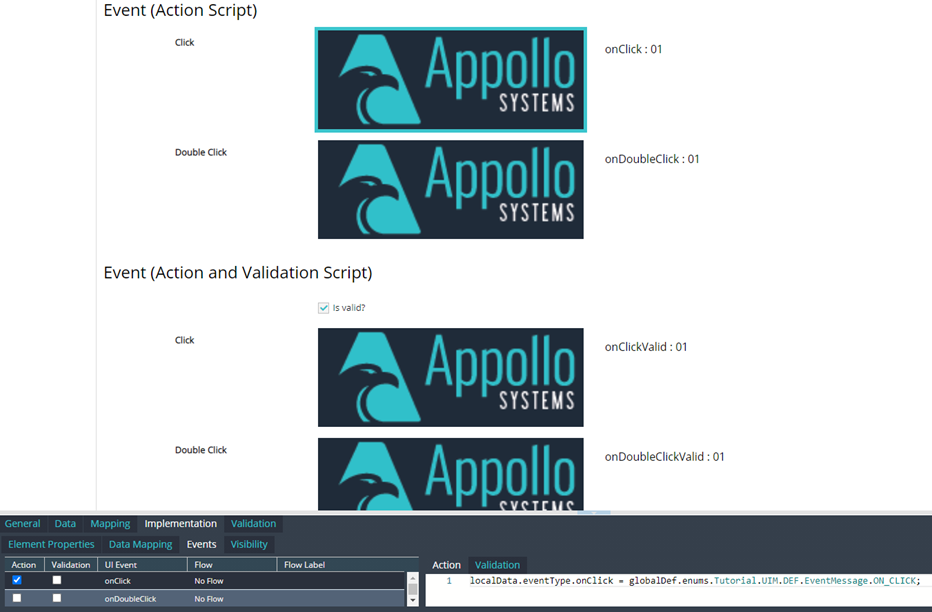

Exercise 4: TAB "Events" - Action Scripts


  • Step 1: Select the first UI Image and open TAB "Implementation" SubTab "Events" to specify event type "onClick"
  • Step 2: Implement the action script, which displays the related event action at the right side of the UI element.

localData.eventType.onClick = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CLICK;




UI Element - Image




  • Step 3: Repeat Step 1 and 2 for the other UI elements to specify further event types and related action scripts, which display the related event action at the right side of the UI element.

  • event type "onDoubleClick"
localData.eventType.onDoubleClick = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_DOUBLE_CLICK;



UI Element - Image


Exercise 5: TAB "Events" - Action & Validation Scripts

  • Step 1: Select the first UI Image and open TAB "Implementation" SubTab "Events" to specify event type "onClick"
  • Step 2: Implement the action the validation scripts, which display the related event action at the right side of the UI element in case of no validation error.

  • action script "onClick" event
localData.eventType.onClickValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CLICK_VALID;

  • validation script "onClick" event
localData.eventType.isValid


UI Element - Image



  • Step 3: Repeat Step 1 and 2 for the other UI elements to specify further event types and related action and validation scripts, which display the related event action at the right side of the UI element.

  • action script
  • "onDoubleClick" event
localData.eventType.onDoubleClickValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_DOUBLE_CLICK_VALID;


  • validation script
  • "onDoubleClick" event
localData.eventType.isValid




UI Element - Image

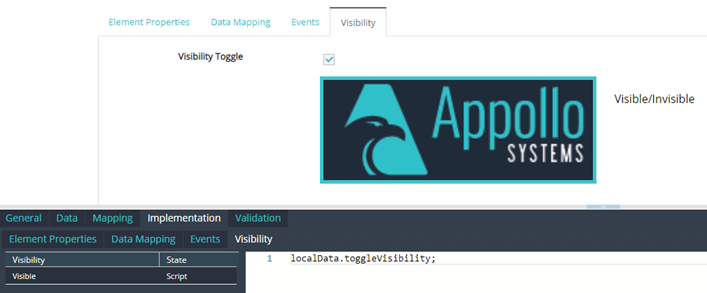

Exercise 6: TAB "Visibility"

  • Step 1: Drag&Drop attribute "toggleVisibility" from TAB "Data" into the third free span of second row and keep default in dialog "Select Component" to add the corresponding UI Label and UI CheckBox to the UI page.


UI Element - Image



  • Step 2: Select the first UI Image and open TAB "Implementation" SubTab "Visibility"
  • Step 3: Click at visibility type "Visible" and select state "Script"
  • Step 4: Implement the visibility script, which toggles the visibility "visible" and "invisible"

localData.toggleVisibility


UI Element - Image





Exercise 7: Set UI Page as submodel of the Frontend Service Model

  • Step 1: Open frontend service model "Automation/Service/Training/UIM/Exercise/Advanced/Image"
  • Step 2: Select UI page "Display Image" to open TAB "General", SubTAB "Element"

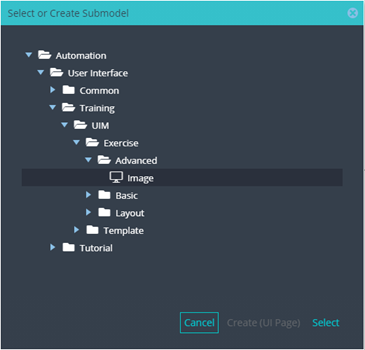

  • Step 3: Click button “Search“ to open dialog "Select or Create Submodel" and select UI page "Image" with double click



  • Step 4: Right click on button flow to set label with "Exit" flow.





Exercise 8: Set Frontend Service Model as submodel of the Business Process

  • Step 1: Open business process model "Automation/Business Process/Training/UIM/Exercise/Advanced/Image"
  • Step 2: Select each user task to open TAB "General", SubTAB "Element"

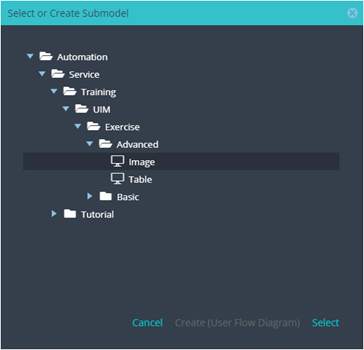

  • Step 3: Click button “Search“ to open dialog "Select or Create Submodel" and select user flow diagram "Image" with double click




Exercise 9: Test the UI Page

  • Step 1: Open UI Page and click button "Preview" in the toolbar to directly test the UI page within the UI editor
  • Step 2: Optionally publish the frontend service model and business process and test the UI page in User Portal



1

Configure "Container (H-Alignment)"

1. Configure "Container (H-Alignment)"
In row "Container (H-Alignment)" for each UI Image select button "Span" to configure H-Alignment [Left], [Center], [Right] of the UI element
1

Configure Value H-Alignment

1. Configure Value H-Alignment
Open TAB "Element Properties" and select each UI Image to configure the value H-Alignment [Left], [Center], [Right]
1

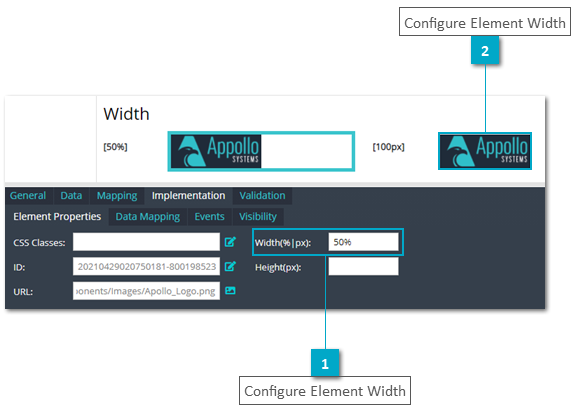

Configure Element Width

1. Configure Element Width
Select each UI Image to configure the element width [50%]
2

Configure Element Width

2. Configure Element Width
Select each UI Image to configure the element width [100px]
1

Configure Element Height

1. Configure Element Height
Select each UI Image to configure the element height [50px]
2

Configure Element Height

2. Configure Element Height
Select each UI Image to configure the element height [25px]
1

Drag&Drop UI Image from Palette

1. Drag&Drop UI Image from Palette
Drag&Drop UI Image from palette into second free span to configure a "Static Image" to the UI page.

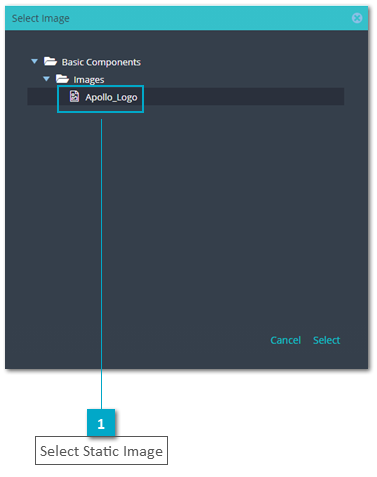

1

Select Static Image

1. Select Static Image
Select the file "xAPPnow_Logo" and click on button "Select" or double click over "xAPPnow_Logo" to select static image.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"

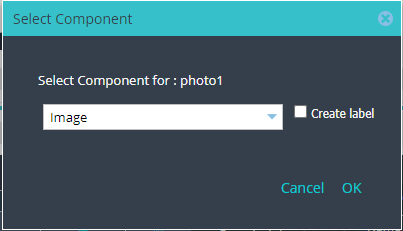

Drag&Drop attribute "photoAlbum.photo1" from TAB "Data" into second free span to open dialog "Select Component" and select "Image" to add the corresponding UI Image to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "ocean" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI Image to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop BO "continent" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI Image to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "month" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI Image to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop other attributes from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI Image to the UI page.
1

Open Dialog Select Image

1. Open Dialog Select Image
Select the UI Image and open TAB "Implementation" SubTab "Element Properties", click button URL to open dialog "Select Image"

1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Events"
2

Event Action

2. Event Action
The event action is displayed at the right side of the corresponding UI element
3

Select Event Type

3. Select Event Type
Select event type "onClick"
4

Enter Action Script

4. Enter Action Script
Enter action script for the selected event type

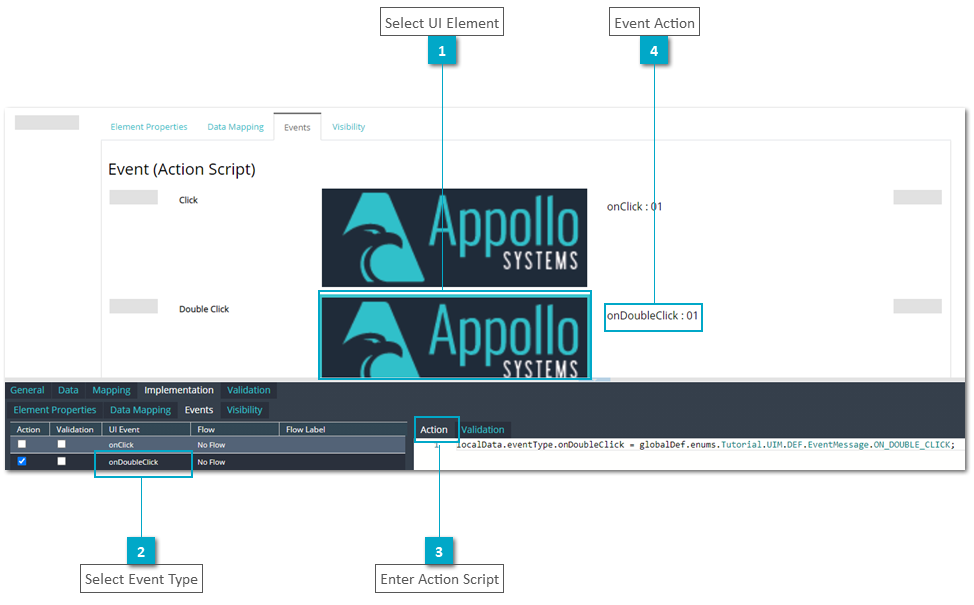

1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Events"
2

Select Event Type

2. Select Event Type
Select event type "onDoubleClick"
3

Enter Action Script

3. Enter Action Script
Enter action script for the selected event type
4

Event Action

4. Event Action
The event action is displayed at the right side of the corresponding UI element
1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Events"
2

Select Event Type

2. Select Event Type
Select event type "onClick"
3

Enter Action & Validation Script

3. Enter Action & Validation Script
Enter action & validation script for the selected event type
4

Event Action

4. Event Action
The event action is displayed at the right side of the corresponding UI element

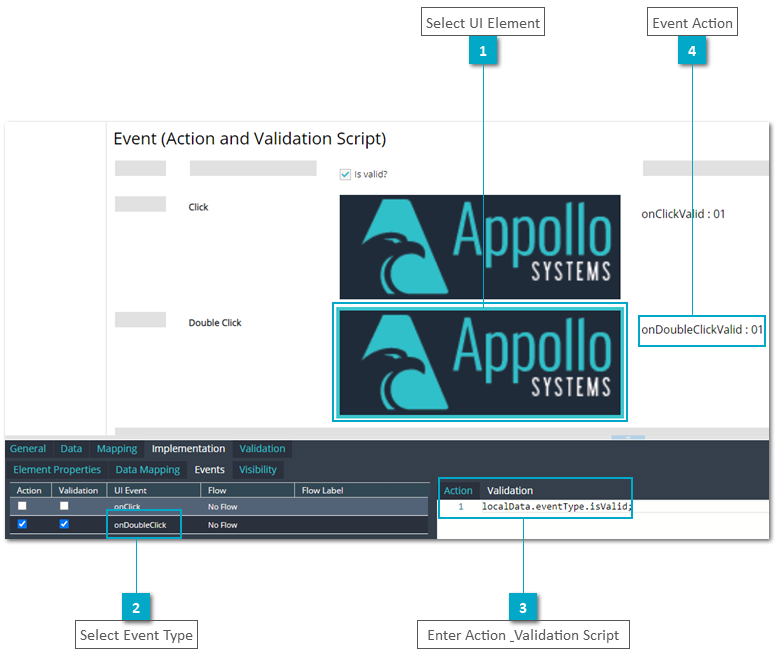

1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Events"
2

Select Event Type

2. Select Event Type
Select event type "onDoubleClick"
3

Enter Action & Validation Script

3. Enter Action & Validation Script
Enter action & validation script for the selected event type
4

Event Action

4. Event Action
The event action is displayed at the right side of the corresponding UI element


1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "toggleVisibility" from TAB "Data" into third free span and keep default in dialog "Select Component" to add the corresponding UI Label and UI CheckBox to the UI page.
1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Visibility"
2

Select "Enabled" and State "Script"

2. Select "Enabled" and State "Script"
Click at visibility "Visible" and select state "Script"
3

Enter Visibility Script

3. Enter Visibility Script
Implement the visibility script, which toggles the visibility "visible" and "invisible"
1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Visibility"
2

Select "Visible" and State "Script"

2. Select "Visible" and State "Script"
Click at visibility "Visible" and select state "Script"
3

Enter Visibility Script

3. Enter Visibility Script
Implement the visibility script, which toggles the visibility "visible" and "invisible"
