UI Element - DateTimeField


Related subfolder of the training project: "Training/UIM/Exercise/Basic"



Chapter Overview


In this training chapter you get familiar with the configuration possibilities of the UI Element DateTimeField.



TAB "Element Properties"

The TAB "Element Properties" contains the configuration for

  • UI element value horizontal alignment (left, center, right)
  • UI element width configuration (percentage, pixel)
  • UI element height configuration (pixel)
  • UI container horizontal alignment (left, center, right)
  • Show internal label (checked, unchecked)






TAB "Data Mapping"

The TAB "Data Mapping" contains the attribute type related mapping of the UI element

  • date&time format
  • date format
  • time format






TAB "Data Validation"

The TAB "Data Validation" contains the attribute type related validation, default value and mandatory specification of the UI element based on the BO attribute configuration in SubTAB "Values and Validation".

  • date out of range
  • date value
  • date range
  • date mandatory






    TAB "Events"

    The TAB "Events" contains the events and related "Action" and "Validation" scripts of the UI element.

  • onClick
  • onDoubleClick
  • onBlur
  • onChange

    For each UI element the related event action is displayed at the right side of the UI element. In case of a validation error a default error message is displayed at the top right of the UI page and the action script is not executed.






    TAB "Visibility"

    The TAB "Visibility" contains the visibility configuration and the "Visibility" scripts of the UI element.

  • editable/readonly
  • visible/invisible
  • mandatory

    For each UI element the visibility can be changed by the checkbox "Visibility Toggle".







Exercise


In this exercise you will get familiar with the configuration possibilities of the UI element by completing the UI TABs as described above. You can test the implementation in UI Page Preview, in the Preview of the Frontend Service Model and optionally in the xAPPnow User Portal.



Exercise 1: Create UI Page "DateTimeField"

  • Step 1: Open context menu of folder "Automation/User Interface/Training/UIM/Exercise/Basic" in the model tree
  • Step 2: Select menu function "Create Model" to open dialog "Create User Interface Model"
  • Step 3: Enter model name "DateTimeField" and keep option "Model Type: UI Page"
  • Step 4: Select option "From: UI Page" to open dialog "Select UI Page", open folder "…/Training/UIM/Template/Basic" to select template "TMPL_DateTimeField" with double click then keep default option for "Default Device" and "Default Label" then click button "OK" to create the UI page






Exercise 2: TAB "Element Properties"

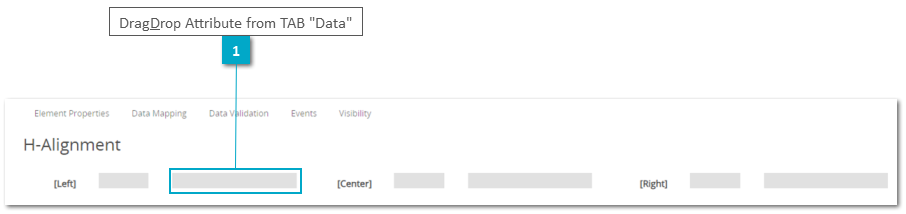

  • Step 1: Drag&Drop attribute "school.semesterInit" from TAB "Data" into second free span to open dialog "Select Component" and keep default to add the corresponding UI Label and UI DateTimeField to the UI page.



UI Element - DateTimeField



  • Step 2: Repeat Step 2 and add Label and DateTimeField for attribute "school.semesterInit" to
  • H-Aligment [Center], [Right]
  • Width [50%], [100px]
  • Height [50px], [100px]
  • Container H-Aligment [Left], [Center], [Right]
  • Show Internal Label [Unchecked], [Checked]



UI Element - DateTimeField



  • Step 3: Open TAB "Implementation" SubTab "Element Properties" and select each UI DateTimeField to configure the value H-Alignment [Left], [Center], [Right]



UI Element - DateTimeField



  • Step 4: In next row select the UI DateTimeField to configure width [50%] and width [100px]



UI Element - DateTimeField


  • Step 5: Select each UI DateTimeField to configure height [50px] and height [100px]



UI Element - DateTimeField



  • Step 6: Select each UI DateTimeField to configure width [50%]. Then select each of them again and click at button "Span" to configure H-Alignment [Left], [Center], [Right] of the UI element




UI Element - DateTimeField

  • Step 7: In row "Show Internal Label" for second UI DateTimeField:
  • Remove label "Date"

UI Element - DateTimeField


b. Select UI DateTimeField and select "Show Internal Label"


UI Element - DateTimeField


Exercise 3: TAB "Data Mapping"

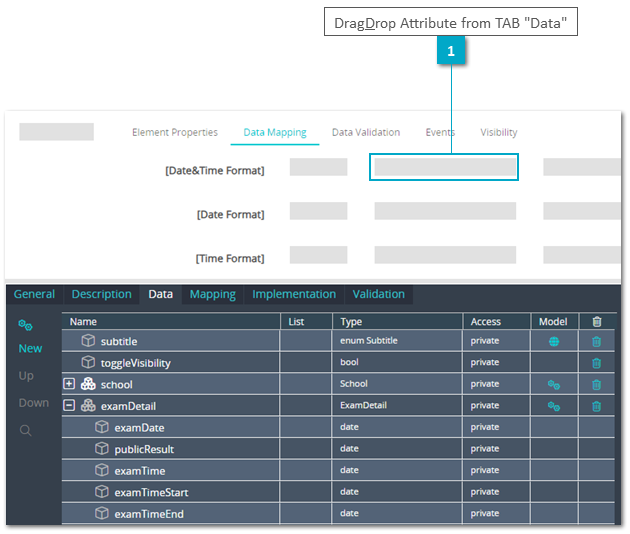

  • Step 1: Drag&Drop attribute "examDetail.publicResult" from TAB "Data" into second free span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.



UI Element - DateTimeField

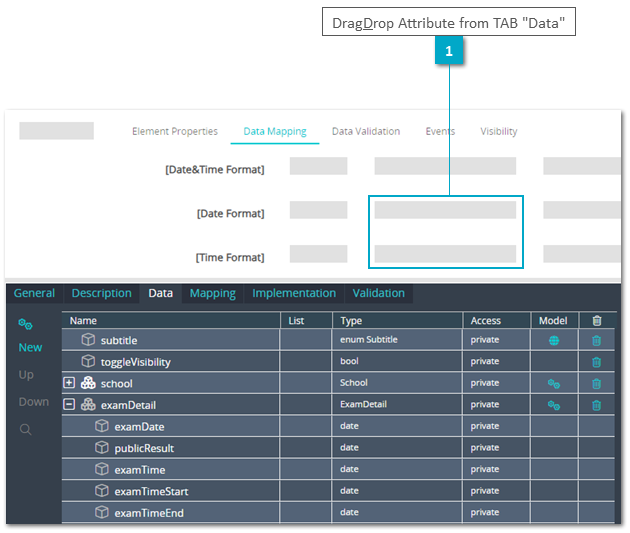

  • Step 2 Repeat Step 1 and add Label and DateTimeField for attributes
  •  "examDetail.examDate"
  • "examDetail.examTime"




UI Element - DateTimeField



Exercise 4: TAB "Data Validation"

  • Step 1: Drag&Drop attribute "intEvent.firstCall" from TAB "Data" into the third free span and keep default in dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.



UI Element - DateTimeField


  • Step 2 Repeat Step 1 and add Label and DateTimeField for attributes
  • "intEvent.sendSummary"
  • "intEvent.conference"
  • "intEvent.registration"




UI Element - DateTimeField



Exercise 5: TAB "Events" - Action Scripts

  • Step 1: Drag&Drop attribute "trip.departure" from TAB "Data" into second free span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.




UI Element - DateTimeField

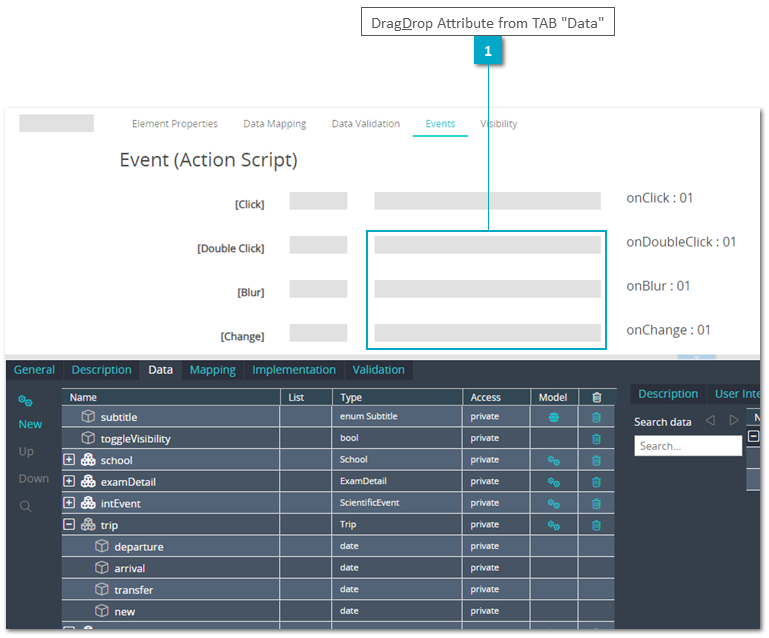

  • Step 2 Repeat Step 1 to add Label and DateTimeField for attributes
  • "trip.arrival"
  • "trip.transfer"
  • "trip.new"

    UI Element - DateTimeField



  • Step 3: Select the first UI DateTimeField and open TAB "Implementation" SubTab "Events" to specify event type "onClick"
  • Step 4: Implement the action script, which displays the related event action at the right side of the UI element.

localData.eventType.onClick = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CLICK;



UI Element - DateTimeField




  • Step 5: Repeat Step 3 and 4 for the other UI elements to specify further event types and related action scripts, which display the related event action at the right side of the UI element.

  • event type "onDoubleClick"
localData.eventType.onDoubleClick = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_DOUBLE_CLICK;

  • event type "onBlur"
localData.eventType.onBlur = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_BLUR;

  • event type "onChange"
localData.eventType.onChange = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CHANGE;





UI Element - DateTimeField


Exercise 6: TAB "Events" - Action & Validation Scripts

  • Step 1: Select the first UI DateTimeField with placeholder "Select time..." and open TAB "Implementation" SubTab "Events" to specify event type "onClick"
  • Step 2: Implement the action the validation scripts, which display the related event action at the right side of the UI element in case of no validation error.

  • action script "onClick" event
localData.eventType.onClickValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CLICK_VALID;

  • validation script "onClick" event
localData.eventType.isValid


UI Element - DateTimeField



  • Step 3: Repeat Step 1 and 2 for the other UI elements to specify further event types and related action and validation scripts, which display the action at the right side of the UI element.

  • action script
  • "onDoubleClick" event
localData.eventType.onDoubleClickValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_DOUBLE_CLICK_VALID;

  • "onBlur" event
localData.eventType.onBlurValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_BLUR_VALID;

  • "onChange" event
localData.eventType.onChangeValid = globalDef.enums.Tutorial.UIM.DEF.EventMessage.ON_CHANGE_VALID;


  • validation script
  • "onDoubleClick" event
localData.eventType.isValid

  • "onBlur" event
localData.eventType.isValid

  • "onChange" event
localData.eventType.isValid



Exercise 7: TAB "Visibility"

  • Step 1: Drag&Drop attribute "toggleVisibility" from TAB "Data" into the third free span and keep default in dialog "Select Component" to add the corresponding UI Label and UI CheckBox to the UI page.


UI Element - DateTimeField



  • Step 2: Select the first UI DateTimeField and open TAB "Implementation" SubTab "Visibility"
  • Step 3: Click at visibility type "Editable" and select state "Script"
  • Step 4: Implement the visibility script, which toggles the visibility "editable" and "readonly"

localData.toggleVisibility


UI Element - DateTimeField


  • Step 5: Repeat steps 2..4 for second and third UI DateTimeField for visibility type "Visible" and "Mandatory", which toggles the visibility "visible" and "invisible" and "mandatory"



UI Element - DateTimeField


Exercise 8: Set UI Page as submodel of the Frontend Service Model

  • Step 1: Open frontend service model "Automation/Service/Training/UIM/Exercise/Basic/DateTimeField"
  • Step 2: Select UI page "View DateTimeField" to open TAB "General", SubTAB "Element"

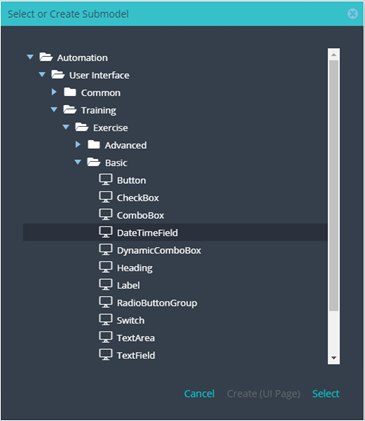

  • Step 3: Click button “Search“ to open dialog "Select or Create Submodel" and select UI page "DateTimeField" with double click

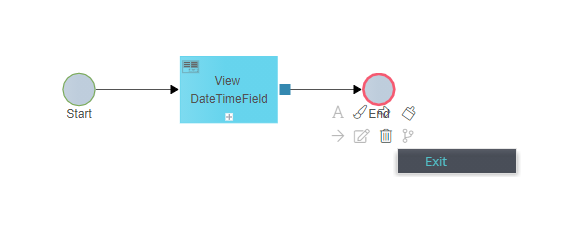

  • Step 4: Right click on button flow to set label with "Exit" flow.



Exercise 9: Test the UI Page

  • Step 1: Open UI Page and click button "Preview" in the toolbar to directly test the UI page within the UI editor
  • Step 2: Optionally publish the frontend service model and test the UI page in User Portal




1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "school.semesterInit" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attributes of "school" from TAB "Data" into the span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
2

Drag&Drop Attribute from TAB "Data"

2. Drag&Drop Attribute from TAB "Data"
Drag&Drop attributes of "school" from TAB "Data" into the span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
3

Drag&Drop Attribute from TAB "Data"

3. Drag&Drop Attribute from TAB "Data"
Drag&Drop attributes of "school" from TAB "Data" into the span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
4

Drag&Drop Attribute from TAB "Data"

4. Drag&Drop Attribute from TAB "Data"
Drag&Drop attributes of "school" from TAB "Data" into the span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
1

Configure Value H-Alignment

1. Configure Value H-Alignment
Open TAB "Properties" and select each UI TextField to configure the value H-Alignment [Left], [Center], [Right]
1

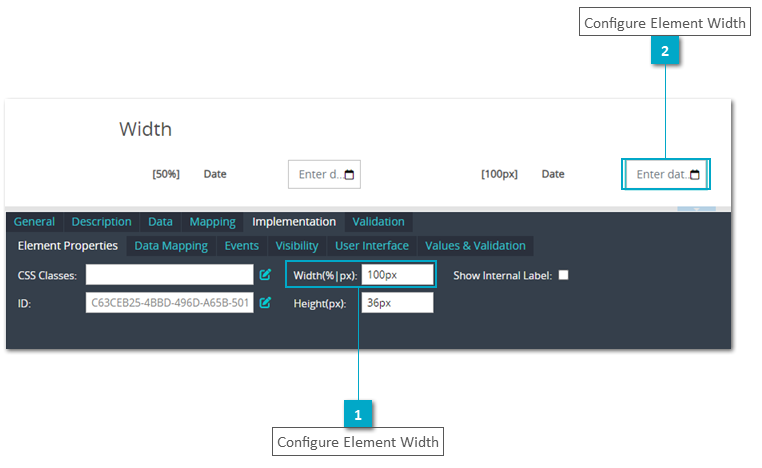

Configure Element Width

1. Configure Element Width
Select each UI DateTimeField to configure the element width [50%]
2

Configure Element Width

2. Configure Element Width
Select each UI DateTimeField to configure the element width [100px]
1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Element Properties"
2

Configure Element Height

2. Configure Element Height
Select each UI DateTimeField to configure the element height [100px]
1

Click Button "Span"

1. Click Button "Span"
Click button "Span" to configure the element H-Alignment
1

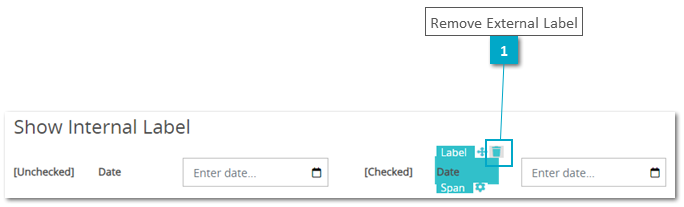

Remove External Label

1. Remove External Label
Click to remove label "Date"
1

Select Show Internal Label

1. Select Show Internal Label
Click to select internal label
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "examDetail.publicResult" from TAB "Data" into second span and keep default in dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop other attributes of BO "examDetail" from TAB "Data" into second span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "intEvent.firstCall" from TAB "Data" into third free span of second span and keep default in dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop other attributes of BO "intEvent" from TAB "Data" into third free span of third row and keep default in dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "trip.departure" from TAB "Data" into second free span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attributes from BO "trip" from TAB "Data" into second free span to open dialog "Select Component" to add the corresponding UI Label and UI DateTimeField to the UI page.
1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Events"
2

Select Event Type

2. Select Event Type
Select event type "onClick"
3

Enter Action Script

3. Enter Action Script
Enter action script for the selected event type
4

Event Action

4. Event Action
The event action is displayed at the right side of the corresponding UI element

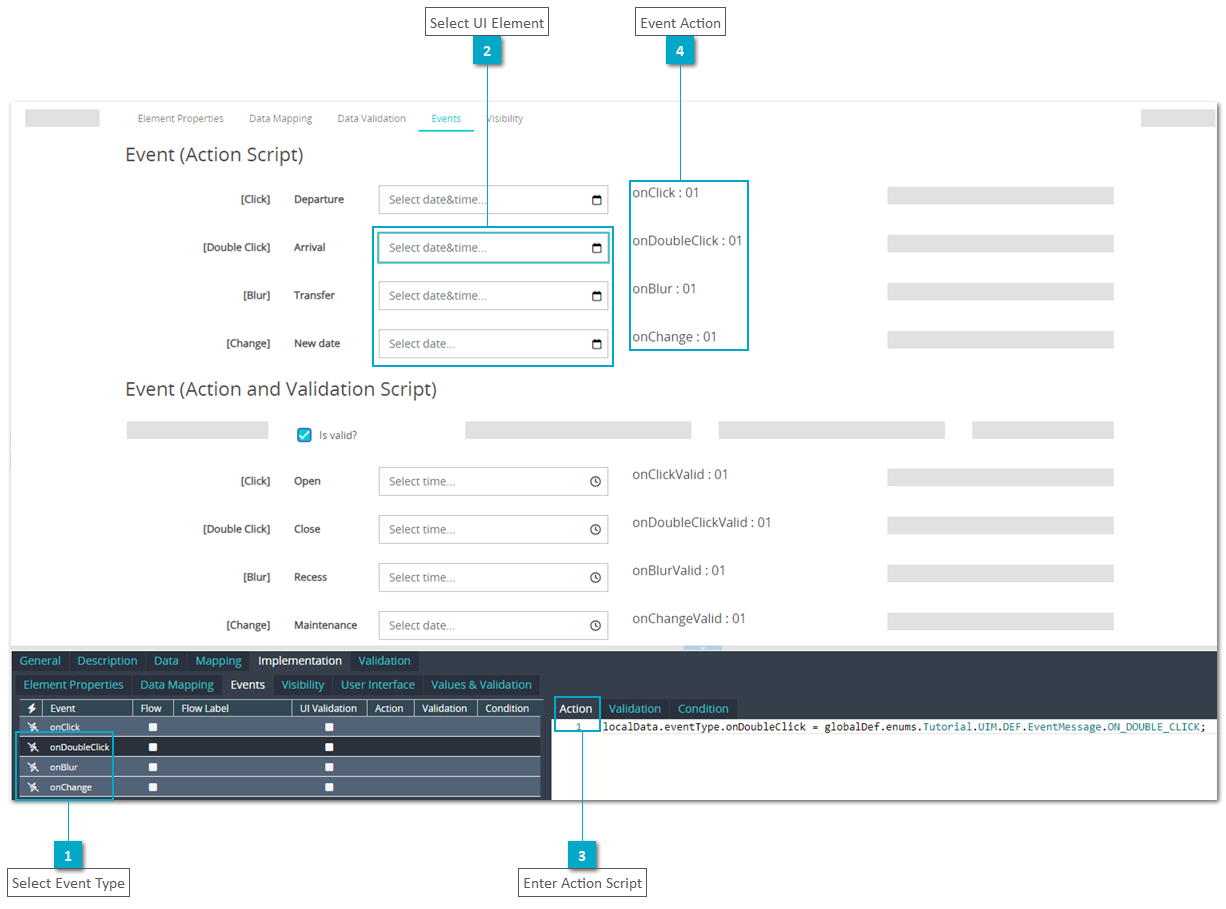

1

Select Event Type

1. Select Event Type
Select event type "onClick", "onDoubleClick", "onBlur"
2

Select UI Element

2. Select UI Element
Select UI element and open TAB "Events"
3

Enter Action Script

3. Enter Action Script
Enter action script for the selected event type
4

Event Action

4. Event Action
The event action is displayed at the right side of the corresponding UI element
1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Events"
2

Select Event Type

2. Select Event Type
Select event type "onClick"
3

Enter Action & Validation Script

3. Enter Action & Validation Script
Enter action & validation script for the selected event type
4

Event Action

4. Event Action
The event action is displayed at the right side of the corresponding UI element
1

Drag&Drop Attribute from TAB "Data"

1. Drag&Drop Attribute from TAB "Data"
Drag&Drop attribute "toggleVisibility" from TAB "Data" into third free span and keep default in dialog "Select Component" to add the corresponding UI Label and UI CheckBox to the UI page.
1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Visibility"
2

Select "Editable" and State "Script"

2. Select "Editable" and State "Script"
Click at visibility "Editable" and select state "Script"
3

Enter Visibility Script

3. Enter Visibility Script
Implement the visibility script, which toggles the visibility "editable" and "readonly"

1

Select UI Element

1. Select UI Element
Select UI element and open TAB "Visibility"
2

Select "Visible" and State "Script"

2. Select "Visible" and State "Script"
Click at visibility "Visible" and select state "Script"
3

Enter Visibility Script

3. Enter Visibility Script
Implement the visibility script, which toggles the visibility "visible" and "invisible"
