BPMN Collaboration Model Elements

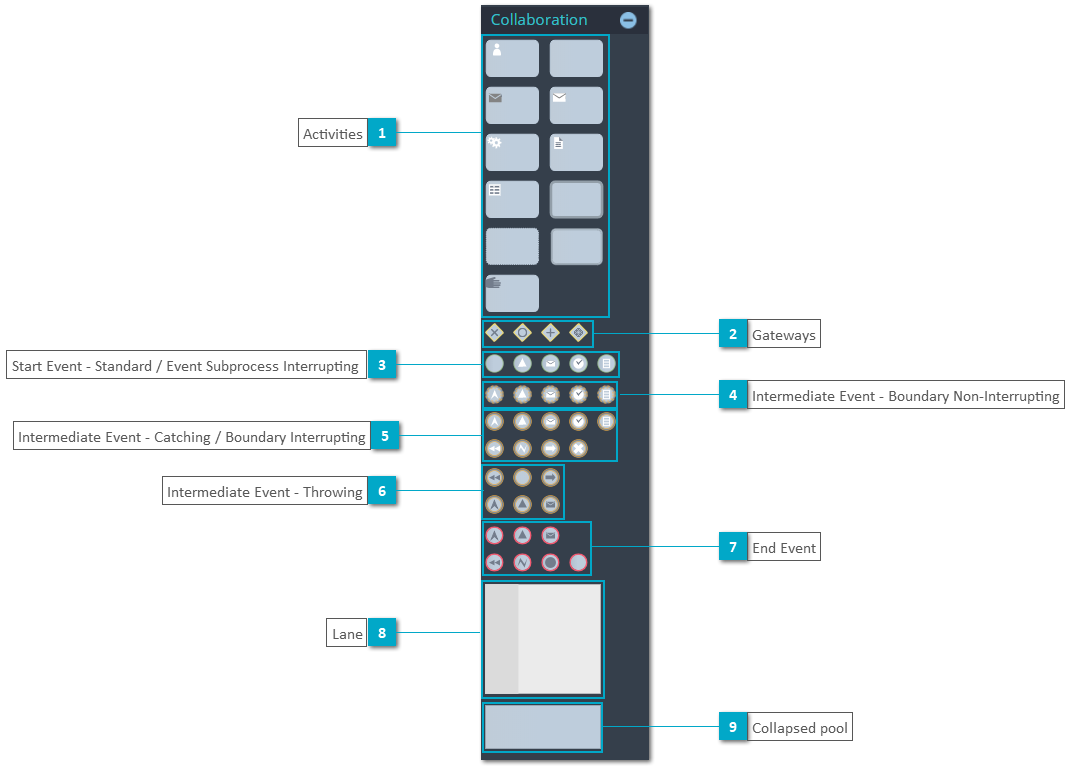

This palette contains the BPMN elements for a Collaboration Model.



BPMN Collaboration Model Elements



Collaboration Model Elements


1

Activities

1. Activities

The Activities Section of the Collaboration Model Palette contains the following elements (left to right):
  • User Task
  • Untyped Task
  • Send Task
  • Receive Task
  • Service Task
  • Script Task
  • Business Rule Task
  • Call Activity
  • Event Subprocess
  • Transaction Subprocess
  • Manual Task
2

Gateways

2. Gateways
This section of the Collaboration Model Palette contains the following elements (left to right):
  • Exclusive Gateway (XOR-Gateway)
  • Inclusive Gateway (OR-Gateway)
  • Parallel Gateway (AND-Gateway)
  • Event-based Gateway

3

Start Event - Standard / Event Subprocess Interrupting

3. Start Event - Standard / Event Subprocess Interrupting
This section of the Collaboration Model Palette contains the following elements (left to right):
  • Untyped
  • Signal
  • Message
  • Timer
  • Conditional
4

Intermediate Event - Boundary Non-Interrupting

4. Intermediate Event - Boundary Non-Interrupting
This section of the Collaboration Model Palette contains the following elements (left to right):
  • Escalation
  • Signal
  • Message
  • Timer
  • Conditional

5

Intermediate Event - Catching / Boundary Interrupting

5. Intermediate Event - Catching / Boundary Interrupting
This section of the Collaboration Model Palette contains the following elements (left to right):
  • Escalation
  • Signal
  • Message
  • Timer
  • Conditional
  • Compensation
  • Error
  • Link
  • Cancel

6

Intermediate Event - Throwing

6. Intermediate Event - Throwing
This section of the Collaboration Model Palette contains the following elements (left to right):
  • Compensation
  • Untyped
  • Link
  • Untyped
  • Escalation
  • Signal
  • Message

7

End Event

7. End Event
This section of the Collaboration Model Palette contains the following elements (left to right):
  • Escalation
  • Signal
  • Message
  • Compensation
  • Error
  • Terminate
  • Untyped

8

Lane

8. Lane
Lane elements are used to structure role and organization responsibilities of a pool.
9

Collapsed pool

9. Collapsed pool
A collapsed pool represents a collaborative process.
