Definition Object Model Attributes



The attributes TAB of a Definition Object Model depends on the specific Definition Object type:

  • The Definition Object types Enum, as well as all kinds of Error Definition Objects (e.g. Technical Error, Business Error, Generic Error, DB Error and Rest API Error) only have the Sub TAB Values
  • The Definition Object type Constant has Sub TAB Values and Sub TAB Description
  • Signal, Message, Escalation Definition Objects have Sub TABs Description and User Interface
  • Task Priority Definition Object has Sub TABs Description, User Interface and Values

The Values Sub TAB depends on the element type. Enum and Error Definition Objects provide a multilanguage possibility.

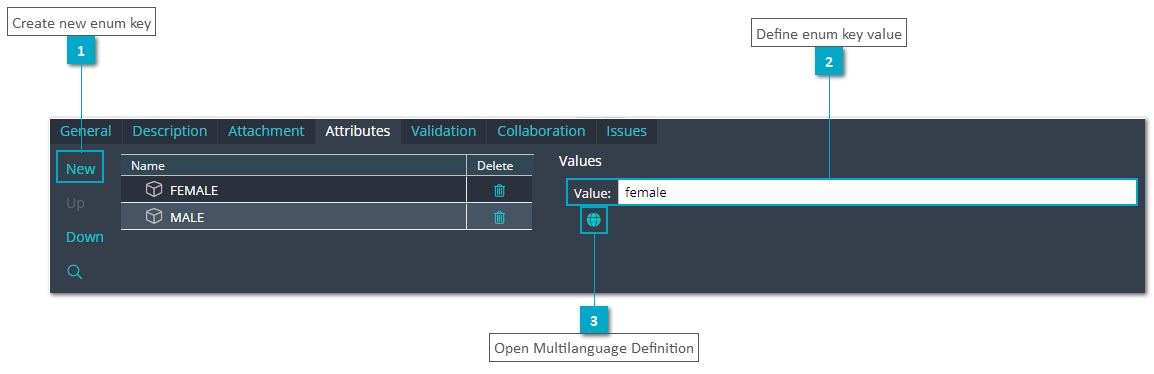

Definition Object Model Attributes



1

Create new enum key

1. Create new enum key
Specify the enum key in column "Name".
2

Define enum key value

2. Define enum key value
Enter the value of the enum key.
3

Open Multilanguage Definition

3. Open Multilanguage Definition
Click this button to open the Multi Language Definition dialog.
